Pronar T672/1 10 t double axle trailer IN STOCK NOW, 3 YEARS WARRANTY

Bács-Kiskun county, 6500 Baja

Hungary

Sharing:

4

Description
IMMEDIATELY AVAILABLE PRONAR TRAILERS FROM DORKER!!!

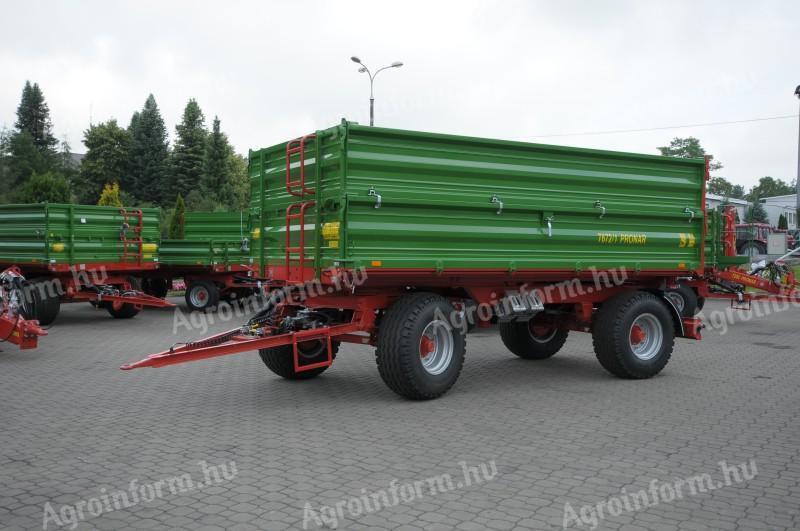

The PRONAR T672/1 trailer is designed to transport agricultural crops, construction materials, fertilizers and other materials. The 10 tonne capacity trailer is standard equipped with a three side tilt system, rear mudguards, rear towing hitch and a manually operated surranto at the rear of the trailer. The trailer can be fitted with pneumatic or hydraulic brakes, depending on the equipment.

Technical data
Gross vehicle weight: 13160 [kg]
Capacity: 10,000 [kg]
Gross weight: 3160 [kg]
Volume of loading space: 11.8 [m³]
Building surface area: 9,8 [m²]
Internal dimensions of superstructure (length x width): 4440 x 2190/2240 [mm]
Trailer enclosure dimensions (length/width/height): 6455/2390/2500 [mm]
Side wall height: 600+600 [mm]
Body thickness (floor/side walls): 5/2.5 [mm]
Platform height (with standard tyres): 1320 [mm]
Press track: 1700 [mm]
Suspension: parabolic leaf springs -
Permissible load on drawbar: - [kg]
Tyres: 15,0/70-18 -
Maximum speed: 30 [km/h]
Tilting system: 3 sideways -
Tilting working cylinder (diameter, extension, oil volume required, working pressure): 4/1700/13 l/160 bar -
Required power of power tool: 72,8/53,5 [HP/KW]
Tilt angle (back/side): 50/46 [°]

Standard equipment
Tilting frame: rectangular, made of closed profiles
Drawbar: V-shaped, Ø40 with fixed drawbar eye
Front axle suspension: pivoting axle
Braking system: single circuit air brake or double circuit air brake or hydraulic brake
Rotary handbrake
12V lighting system with rear socket
Rear sockets for connecting a second trailer
PF sidewall profiles are laser welded
Sidewall fixing wire
Central locking system
Rear wall drain hole with lever-opening cover
Rear mudguards - plastic
Two-component chemically cured paints
Tilting frame colour: red RAL CLASSIC 3000
Sidewall colour: green RAL CLASSIC 6010
Ladder and side steps for easy access to the loading area
Wheel support wedges with brackets
Body support for servicing
